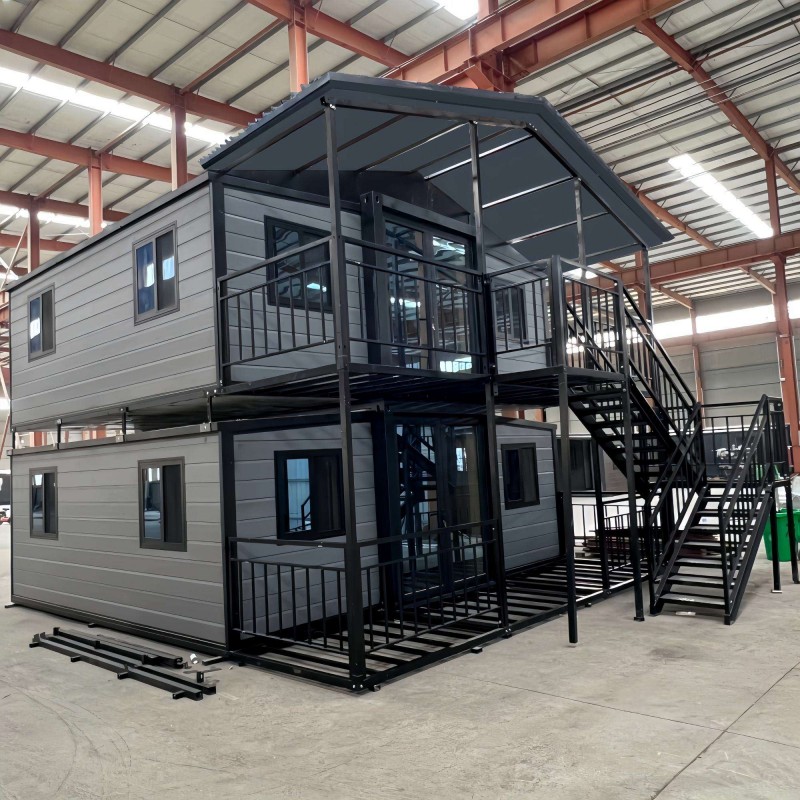

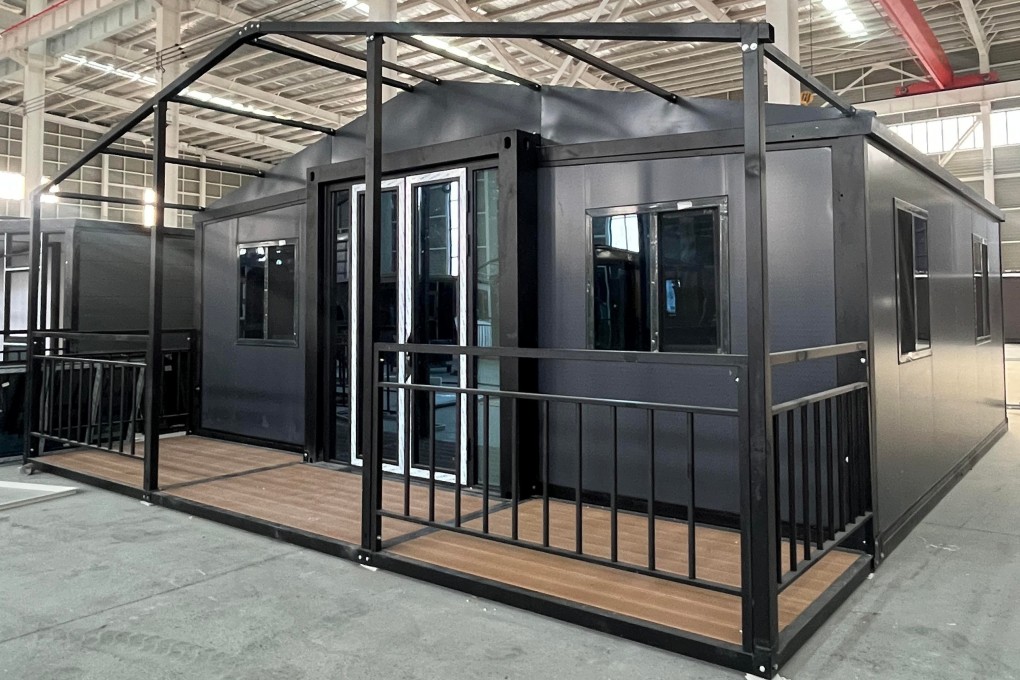

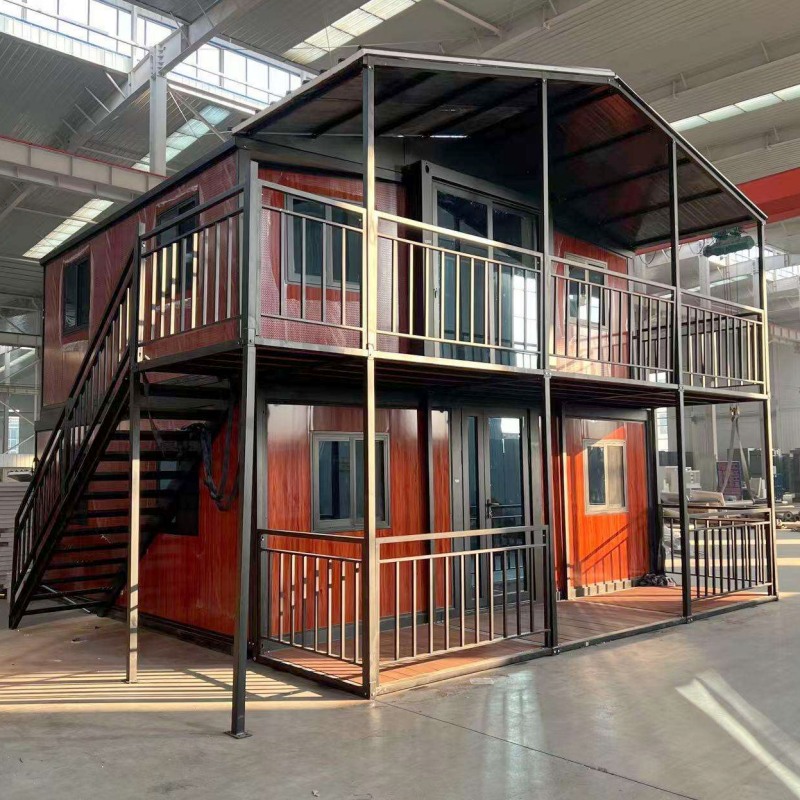

Easy Install Foldable Two Story Expandable Mobile Container House
Expandable container houses
Easy Install Foldable Two Story Expandable Mobile Container House
Easy Install Foldable Two Story Expandable Mobile Container House
Easy Install Foldable Two Story Expandable Mobile Container House
Easy Install Foldable Two Story Expandable Mobile Container House
Easy Install Foldable Two Story Expandable Mobile Container House

Easy Install Foldable Two Story Expandable Mobile Container House

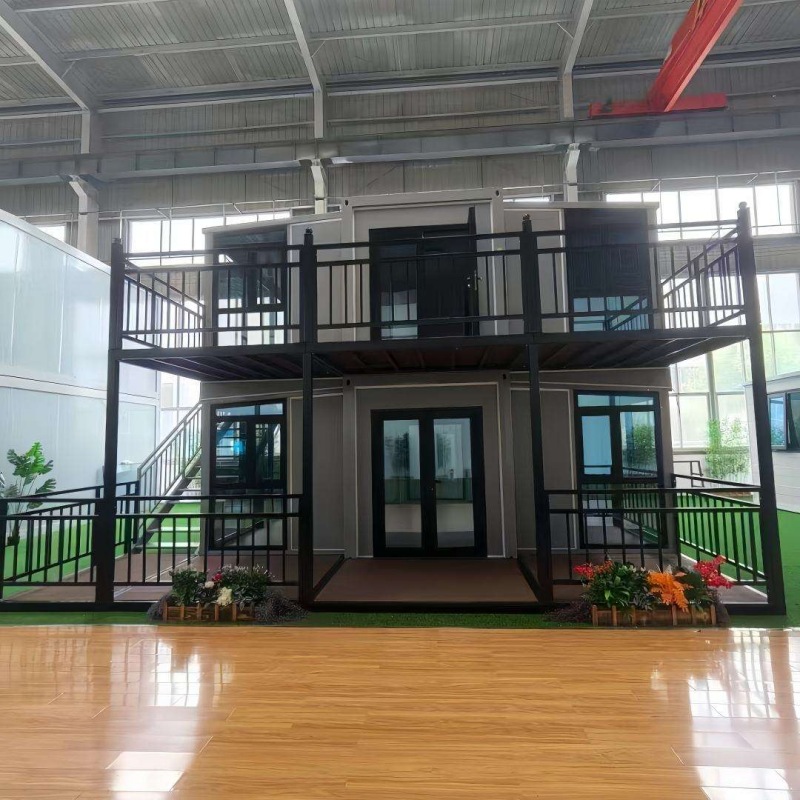

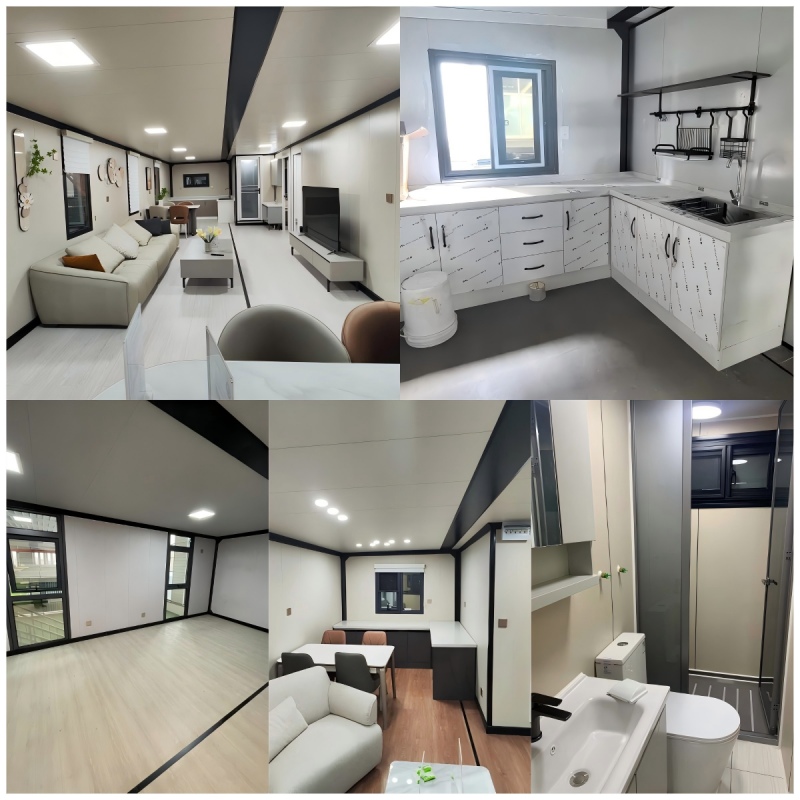

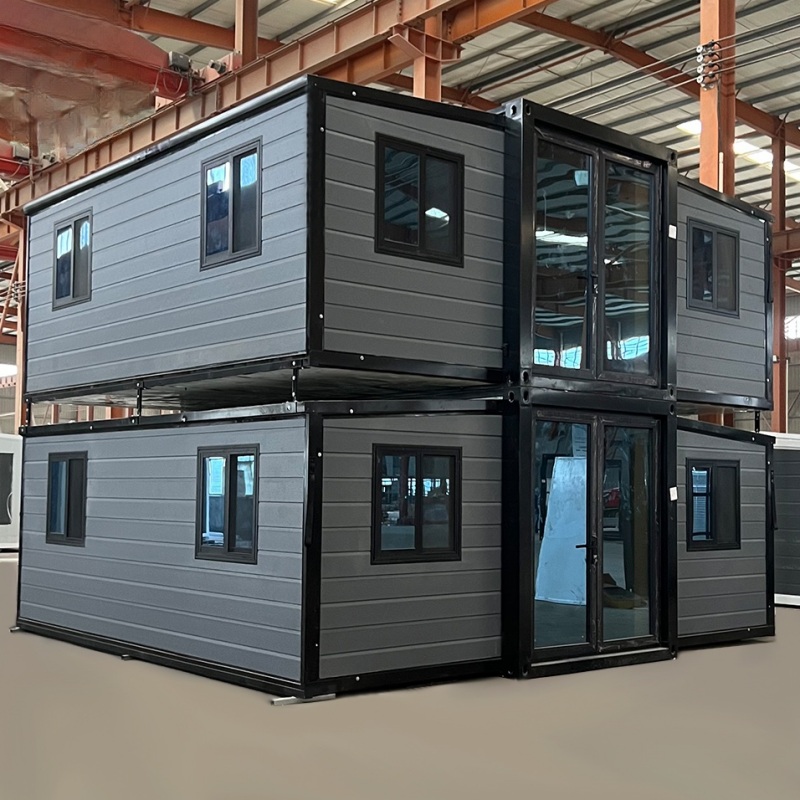

Two Story Steel Structure Expandable Container House is a modern modular home built with a durable steel structure. It can be folded for transport and expanded on-site to create a larger living space. The two-story design offers more room, typically including bedrooms, a living area, kitchen, and bathroom, making it suitable for residential or temporary use. It is customizable in layout and interior finishes, with options for insulation, plumbing, and electrical systems.

  • Mục Không :

    TSH-84
  • Nguồn gốc sản phẩm :

    China
  • Kích thước :

    20FT/40FT Custom
  • Cấu trúc khung :

    Galvanlized Steel Frame
  • Cửa sổ :

    Double-layer hollow PVC window / Aluminum alloy window / Optional screen window
  • Cửa :

    Sliding double glass doors / sandwich board
  • Share to :



20-FT standard wood grain double-wing expansion house technical parameters





Basic
Information
Expanded size
(mm)L*W*H
L5900*W6300*H2480
Internal space (mm)
L*W*H
L5640*W6140*H2240
Folded size (mm) L*W*H
L5900*W2200*H2480
Weight (kG)
2500




Framework
Main beam
Galvanized square tube 80*100*2.5MM Q235
Integrated column head
Galvanized folding piece 150*210*2.0MM Q235
Sub-frame
Galvanized square tube 40*60*1.0MM Q235
Hinges
Galvanized thickened hinge Q235
Frame color
Painting process Black frame



Floor
Middle floor
18mm glass magnesium board (does not contain asbestos)
Both sides floor
18mm glass magnesium board (does not contain asbestos)
Floor leather
Floor leather Palm wood




Insulated wall
Wall panel
70mm sandwich sandwich board, color roll double-sided 0.25 (wood grain color)Standard sandwich material is EPS
Partition
50mm sandwich panel, color steel plate base plate double-sided 0.25 insulation material as abovef
Main top and side top
50mm sandwich panel, color steel plate base plate double-sided 0.25 insulation material as abovet





Electrical system
Parameters
1. Standard Australian standard wires, 62 incoming wires,
4' air conditioning sockets, 2.5- ordinary sockets,
1.5- lighting.
(Circuits that meet certification reguirements can be customized according to the country)
2. Circuit breaker system; 1 2P63A main switch, 1 2P32A/2P20A/2P16 branch leakage protector.
3. Lighting; 6 LED ceiling lights.
4. Sockets:Standard Australian three-hole socket
 (socket standards can be configured according to customer requirements)



Door and window system
Entrance door
Standard thermally-insulated aluminum doors and windows (double glazed tempered glass with blue film) open outwards (door frame is
black) Size: W1890*H2230
Window
Standard aluminum alloy (double glass, tempered, blue film) sliding window with diamond mesh (window frame is black) 920*920*6
pieces



First of all, the cost of Foldable Expandable Container House is 30% lower than that of traditional building, which is more suitable for individual small-scale operation; Secondly, the construction period is short, more than 85% faster than the traditional structure, and the construction  period can be as fast as 10 days; At the same time, the container building can be moved; Inaddition,container house is built without construction waste and noise pollution, which is green and environmental protection.All these house are widely used for family homes,farm houses, yard houses, resort, office and gym. Our products are 100 percent fully load bearing test to make sure the quality, and have obtained CE certificate.Our products have fast production time, beautiful appearance and competitive price. There are a full setof bathroom, kitchen, bedroom, floor, windows, doorand electricity plumbing, with good sound insulation,thermal insulation and rainproof performance.

The advantages of this customized 2 storey expandable container house:

1.Safe and Durable

The life time is more than 20 years,anti-earthquake grade is grade 8 and the wind pressure reistance isgrade10.lacus vel facilisis.

2. Environment Friendly

No waste is generated, good space utilization and high performance.

3.Easy Assembly and Disassembly

Flexible combination, fast build andeasy installation save labor cost.

4.High Performance

Nice capacity of water proof,moisture proof ,fire resistance andheat & sound insulation.

FAQ:

Q1: How long does it take to install the Two Story Extendable House?

A1: Installation is fast and usually takes a few hours to a few days, depending on size and setup.

Q2: Is the Foldable Expandable Waterproof Mobile Container House strong and durable?

A2: Yes, it is built with a steel structure, making it durable, weather-resistant, and long-lasting.

Q3: Is it easy to transport?

A3: Yes, the Luxury 2-Story 20FT Expandable Container House can be folded into a compact size, making it convenient for shipping.

Q4: What is it mainly used for?

A4: It can be used for living, offices, temporary housing, or construction site accommodation.

Q5: Do you offer designing service for us?​

A5: Yes, we offer customized design services. Our design team utilizes advanced software like AutoCAD, SketchUp to create 2D and 3D design drawings. Whether it’s a simple residential container house or a complex commercial structure, we can meet your design needs.​

Q6: What is the lifespan and warranty period?

A6: The lifespan for Prefab house is 5 to 10 years, Container house is 10-15 years, Steel structure is 15-20 years and Villa is 20-50 years. The warranty period for all the house is 12 months from the delivery.

Q7: What the value added service do you have?

A7: We have camp/community planning design, indoor and outdoor electrical/plumbing design, communication/fire alarm/security system supply, furniture/ electric appliance offer, etc.

Q8: Can you send engineers or a whole team to install my project?  ​

A8: We provide detailed installation manuals free of charge. If required, we can dispatch professional engineers to serve as installation supervisors or even send an entire installation team to ensure the smooth setup of your container houses.​

Q9: Do you accept container loading inspection?  ​

A9: Absolutely! You're welcome to send an inspector to oversee container loading.   Moreover, you can arrange inspections at any stage during the production process to ensure transparency.
